輸送瀝青（瀝青泵）選什么泵好-遠東高粘度轉子泵

瀝青是由不同分子量的碳氫化合物及其非金屬衍生物組成的黑褐色復雜混合物，是高黏度有機液體的一種，呈液態，表面呈黑色，可溶于二硫化碳。瀝青是一種防水防潮和防腐的有機膠凝材料。瀝青主要可以分為煤焦瀝青、石油瀝青和瀝青三種：其中，煤焦瀝青是煉焦的副產品。石油瀝青是原油蒸餾后的殘渣。瀝青則是儲藏在地下，有的形成礦層或在地殼表面堆積。瀝青主要用于涂料、塑料、橡膠等工業以及鋪筑路面等。Asphalt is composed of different molecular weight hydrocarbons and non metal derivatives of dark brown complex mixtures, is a kind of organic high viscosity liquid, a liquid surface is black, soluble in carbon disulfide. Asphalt is a kind of waterproof, moisture proof and anticorrosive organic cementitious material. Asphalt can be divided into three kinds of coal tar pitch, petroleum asphalt and natural asphalt: the coal tar pitch is a byproduct of coking. Petroleum asphalt is a crude oil distillation residue. It is in the underground storage of natural asphalt, some form of ore or piled up on the surface of the crust. The asphalt is mainly used for coatings, plastics, rubber and other industrial and paved roads etc..

輸送瀝青必不可少的瀝青泵的選擇一定要慎重。通常瀝青的粘度較大，考慮四季都是交替使用，所以選用瀝青泵都需要配帶保溫裝置，以便保證不凝固常溫下正常輸送。無論哪種類型的瀝青保溫泵都是采用泵體設有空心夾套，通過蒸汽、熱水、導熱油等對輸送的液體進行加熱、保溫的功能，當輸送粘度較大時應采用減速機或皮帶輪等傳動方式降低泵的轉速，達到理想的效果。Delivery of asphalt essential to the choice of asphalt pump must be careful. The viscosity of the asphalt is usually larger, consider the four seasons are used alternately, so the use of asphalt pumps are equipped with a heat insulation device, so as to ensure the normal delivery of non solidified under normal temperature. No matter what type of asphalt heat pump is the pump body is provided with a hollow jacket, by steam, hot water, heat conduction oil for delivery of liquid heating, thermal insulation function, when conveying viscosity should be used gear or belt drive pump to reduce speed, to achieve the ideal effect.

遠東NYP高粘度泵是輸送瀝青的佳轉子泵，高粘度泵是內齒輪泵回轉式正位移泵,液體流動由兩個齒輪產生,主動齒輪和從動輪,內齒輪嵌在外齒輪里面,由一個月牙擋板隔開.當齒輪轉動時,液體被吸入到兩個齒輪和月牙擋板圍成的空間里,當齒輪嚙合時, 液體受壓被排除泵外. 因此, 液體流動平穩 , 并且容量大, 結構緊湊.Far east NYP high viscosity pump is conveying asphalt optimum rotor pump, high viscosity pump is in gear rotary pump is displacement pump, liquid flow generated by the two gears, driving gear and driven wheel, the gear block in the external gear, separated by a crescent plate. When the gear rotates, fluid is drawn into the two gears and crescent baffle enclosed space, when the gear meshing, the pressurized liquid were excluded from the pump. Therefore, the smooth flow of the liquid, and large capacity, compact structure.

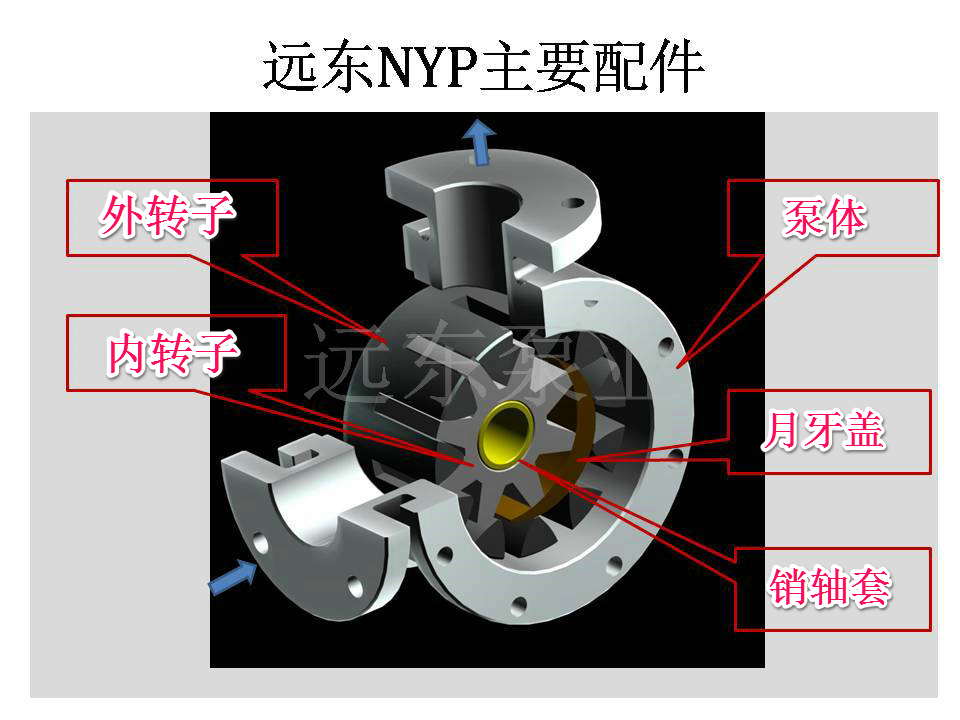

遠東NYP高粘度轉子泵主要配件：Far east NYP high viscosity rotor pump main parts:

NYP高粘度泵該泵的泵體設有空心夾層，并設有進出口法蘭，可用于導熱油、蒸氣、熱水等媒體對輸送的液體和泵進行加熱保溫及冷卻。本型泵的主要過流部位均設有空心夾層,并設有可供通蒸氣,熱/熱水,導熱油等對輸送液體和泵進行加熱,保溫等功能,當輸送粘度較大時應采用減速機,調速電機或皮帶輪等傳動方式,降低泵的轉速.NYP high viscosity pump, the pump body is provided with a hollow interlayer, and a import and export flange, which can be used for heat transfer oil, steam, hot water and other media to transport the liquid and pump for heating insulation and cooling. This type of pump mainly flow area are equipped with hollow interlayer, and a available through steam, hot / cold water, heat conduction oil liquid and pump for conveying heating, insulation and other functions, when conveying viscosity larger should use reducer, motor or pulley transmission mode, reduce the pump speed.

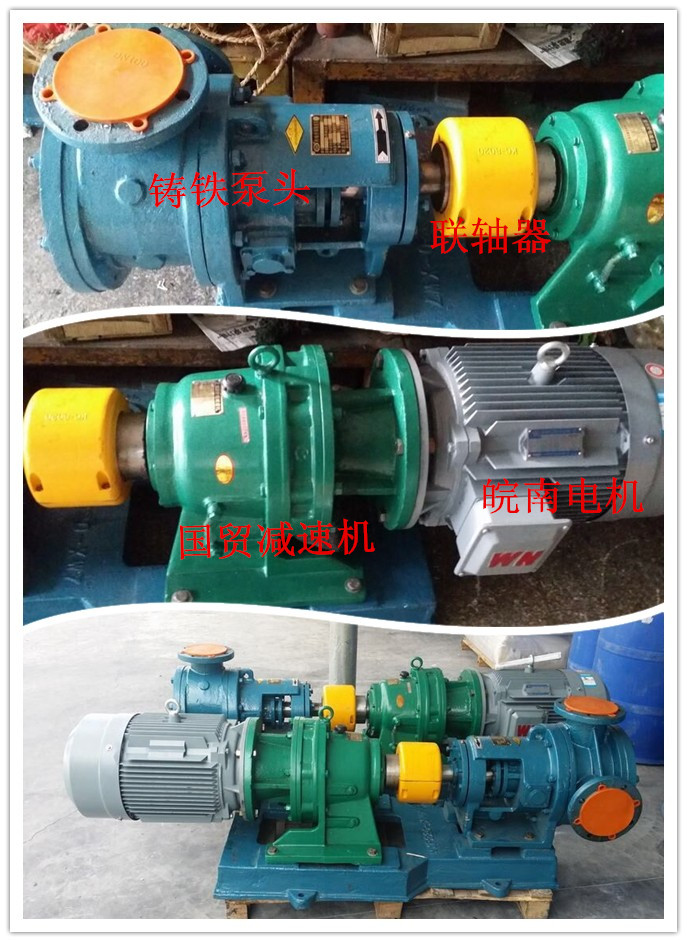

遠東NYP高粘度瀝青泵減速整機圖：Far east NYP high viscosity asphalt pump deceleration machine figure:

選擇遠東高粘度泵的理由：The reason for choosing the Far East high viscosity pump:

遠東瀝青泵典型用戶案例：Typical users of the Far East asphalt pump:

濰坊天元防水材料有限公司Tianyuan Weifang waterproof material Co., Ltd.

瀝青輸送泵型號NYP24-RU-T2 -W11高粘度泵配YCJ100-4KW,流量3m3/h,壓力0.6Mpa。Asphalt transport pump model -W11 NYP24-RU-T2 high viscosity pump with YCJ100-4KW, flow 3m3/h, pressure 0.6Mpa

抽瀝青泵型號NYP24-RU-T2 -W11高粘度泵配YCJ100-4KW,流量3m3/h,壓力0.6Mpa。Pump model -W11 NYP24-RU-T2 high viscosity pump with YCJ100-4KW, flow 3m3/h, pressure 0.6Mpa

廣州禹泰防水科技有限公司Guangzhou Yu Tai Waterproof Technology Co. Ltd.

抽瀝青泵型號NYP320-RU-T2 -W11高粘度泵配CZR107-37KW,流量50m3/h,壓力0.6Mpa。Pump model -W11 NYP320-RU-T2 high viscosity pump with CZR107-37KW, flow 50m3/h, pressure 0.6Mpa

抽瀝青泵型號NYP220B-RU-T1 -W11高粘度泵配R97-18.5KW,流量30m3/h,壓力0.6Mpa。Pump model -W11 NYP220B-RU-T1 high viscosity pump with R97-18.5KW, flow 30m3/h, pressure 0.6Mpa

用戶現場拍攝：User site shooting:

遠東高粘度泵特點

1、國內采用美國威肯技術生產。

2、可根據客戶工藝要求調整泵進出口方向。平進平出、左進上出、右進上出、上進右出、上進左出

3、根據輸送介質不同可采用多種材料組合。滿足不同工況需求。

The characteristics of the Far East high viscosity pump

1, the first use of the technology to produce wiken.

2, according to the customer process requirements to adjust the direction of pump import and export. Flat out into the flat, the left upper and right upper, right, left out upward progress

3, according to the transmission medium can use a variety of different materials. Meet the needs of different conditions.
